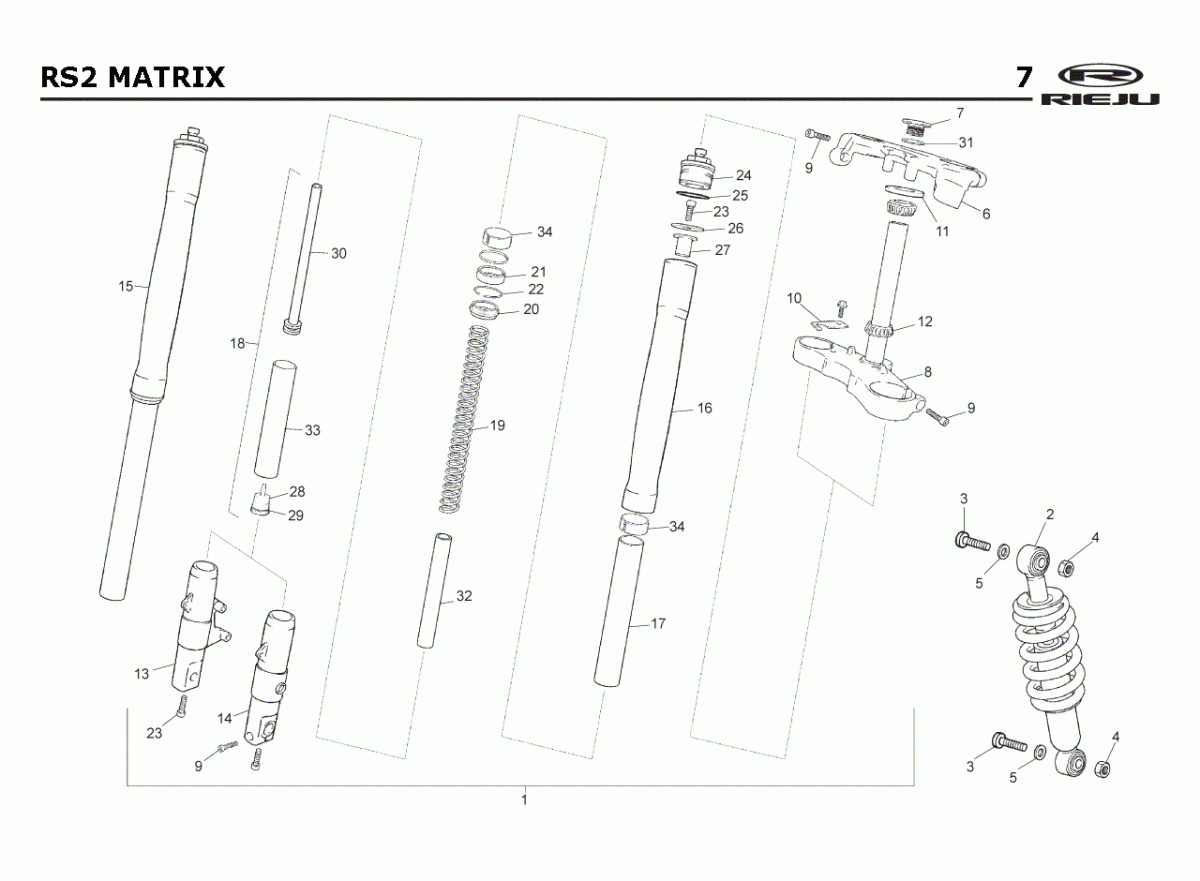

1 | 0/000.130.7000 | FOURCHE COMPLÈTE 0/000.130.7000 |
|
||
|
|
2 | 0/000.180.7000 | AMORTISSEUR 0/000.180.7000 |
|
||
|
|
3 | O/000.460.0402B | (BOLSA 5 uds) TLLO DIN 912 JS500 M10x50 O/000.460.0402B |
3,96 € |
|
|
 |
4 | O/000.340.0182 | ÉCROU Ø10 O/000.340.0182 |
0,88 € |
|
|
|
|
5 | O/000.440.0110B | (SACHET 5 pcs) RONDELLE DIN 125/A M10 Z/BLANC O/000.440.0110B |
1,97 € |
|
|
 |
6 | 0/000.660.7100 | TÉ DE FOURCHE SUPÉRIEUR 0/000.660.7100 |
|
||
 |
7 | 0/000.340.7101 | VIS FIXATION TÉ SUPÉRIEUR (plus livrable) 0/000.340.7101 |
|
||
 |
9 | 0/000.460.0350 | VIS M8 X 35 0/000.460.0350 |
0,56 € |
|
|
|
|
10 | 0/000.660.7000 | GUIDE DURITE FREIN AVANT 0/000.660.7000 |
2,48 € |
|
|
 |
11 | 0/000.200.0001 | CACHE POUSSIÈRE ROULEMENT SUPÉRIEUR 0/000.200.0001 |
6,26 € |
|
|
|
|
11 | 0/000.200.0001 | CACHE POUSSIERE INF. ROULEMENT FOURCHE 0/000.200.0001 |
7,80 € |
|
|
 |
12 | 0/000.960.0200 | ROULEMENT CONIQUE DE DIRECTION 0/000.960.0200 |
13,75 € |
|
|
|
|
13 | 0/000.880.7000 | EMBOUT DROIT FOURCHE 0/000.880.7000 |
67,80 € |
|
|
|
|
14 | 0/000.880.7001 | EMBOUT GAUCHE FOURCHE 0/000.880.7001 |
67,80 € |
|
|
|
|
15 | 0/000.880.7002 | BRAS DROIT/GAUCHE COMPLET SANS EMBOUT 0/000.880.7002 |
|
||
|
|
16 | 0/000.880.7003 | FOURREAU DROIT/GAUCHE 0/000.880.7003 |
121,98 € |
|
|
|
|
17 | 0/000.480.7100 | ENTRETOISE RESSORT 0/000.480.7100 |
3,33 € |
|
|
|
|
19 | 0/000.470.7300 | RESSORT FOURCHE 0/000.470.7300 |
16,30 € |
|
|
 |
21 | 0/000.890.5010 | JOINT SPI FOURCHE 0/000.890.5010 |
17,93 € |
|
|
 |
23 | O/000.460.0345 | VIS DIN.912 M8 X 25 O/000.460.0345 |
0,72 € |
|
|
 |
24 | 0/000.410.7100 | BOUCHON TUBE DE FOURCHE À VISSER 0/000.410.7100 |
48,82 € |
|
|
 |
25 | 0/000.490.7200 | JOINT TORIQUE 0/000.490.7200 |
1,70 € |
|
|
|
|
26 | 0/000.440.7000 | RONDELLE 0/000.440.7000 |
1,71 € |
|
|
|
|
27 | 0/000.710.7000 | GUIDE RESSORT 0/000.710.7000 |
4,13 € |
|
|
|
|
28 | 0/000.410.7101 | BOUCHON INFÉRIEUR 0/000.410.7101 |
16,30 € |
|
|
 |
29 | 0/000.490.7201 | JOINT TORIQUE 0/000.490.7201 |
1,70 € |
|
|
|
|
30 | 0/000.290.7201 | TIGE INTERNE FOURCHE 0/000.290.7201 |
54,26 € |
|
|
 |
31 | O/000.440.0050 | RONDELLE FIXATION TÉ SUPÉRIEUR O/000.440.0050 |
2,26 € |
|
|
|
|
32 | 0/000.290.7203 | CARTOUCHE HYDRAULIQUE COMPLÈTE 0/000.290.7203 |
17,63 € |
|
|
|
|
33 | 0/000.290.7200 | TUBE DE FOURCHE (non dispo plus fabriqué) 0/000.290.7200 |
|
||
|
|
34 | 0/000.300.7001 | BAGUE 0/000.300.7001 |
8,19 € |
|
|
 |
35 | O/000.460.0600B | (SACHET 5 pcs) VIS M6x16 O/000.460.0600B |
1,97 € |
|
