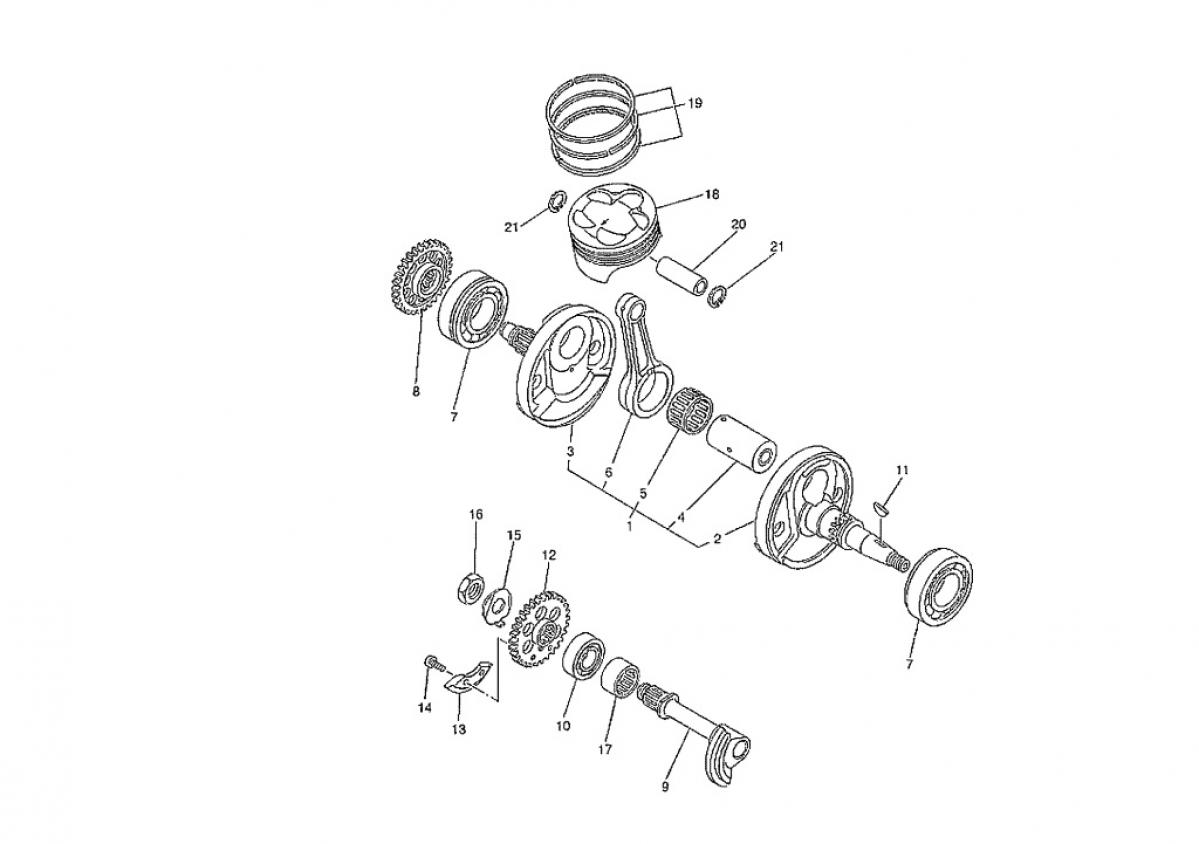

1 | 5UM-11400-30 | CRANCKASSY EC 250 4T 2010 5UM-11400-30 |
715,75 € |
|
|
|
|
1 | 5UM-11400-10 | CRANCKSHAFT ASSY EC 250 4T 2010 5UM-11400-10 |
|
||
|
|
2 | 5UM-11412-10 | CRANK 1 EC 250 4T 2010 5UM-11412-10 |
0,04 € |
|
|
|
|
3 | 5UL-11422-00 | CRANK 2 EC 250 4T 2010 5UL-11422-00 |
0,04 € |
|
|
|
|
4 | 5XC-11681-00 | PIN, CRANK 1 EC 250 4T 2010 5XC-11681-00 |
|
||
|
|
5 | 93310-63238 | BEARING EC 250 4T 2010 93310-63238 |
83,82 € |
|
|
|
|
6 | 17D-11651-90 | ROD.CONNECTING 17D-11651-90 |
124,65 € |
|
|
|
|
6 | 5UL-11651-00 | ROD.CONNECTING EC 250 4T 2010 5UL-11651-00 |
|
||
|
|
7 | 93306-20648 | BEARING EC 250 4T 2010 93306-20648 |
58,25 € |
|
|
|
|
8 | 5NL-11536-10 | GEAR DRIVE EC 250 4T 2010 5NL-11536-10 |
98,44 € |
|
|
|
|
8 | 5NL-11536-00 | GEAR, DRIVE EC 250 4T 2010 5NL-11536-00 |
|
||
|
|
9 | 5NL-11455-00 | SHAFT 1 EC 250 4T 2010 5NL-11455-00 |
453,35 € |
|
|
|
|
10 | 93306-20335 | BEARING EC 250 4T 2010 93306-20335 |
32,52 € |
|
|
|
|
11 | 90280-03006 | KEY, WOODRUFF EC 250 4T 2010 90280-03006 |
|
||
|
|
12 | 5NL-11531-00 | GEAR, BALANCE WEIGHT EC 250 4T 2010 5NL-11531-00 |
153,46 € |
|
|
|
|
13 | 5NL-11454-00 | WEIGHT 1 EC 250 4T 2010 5NL-11454-00 |
0,04 € |
|
|
|
|
14 | 90149-06250 | SCREW EC 250 4T 2010 90149-06250 |
0,04 € |
|
|
|
|
15 | 90215-14204 | WASHER, LOCK EC 250 4T 2010 90215-14204 |
|
||
|
|
16 | 90170-14171 | NUT EC 250 4T 2010 90170-14171 |
4,58 € |
|
|
|
|
17 | 93311-32261 | BEARING EC 250 4T 2010 93311-32261 |
|
||
|
|
18 | 5NL-11631-20 | PISTON EC 250 4T 2010 5NL-11631-20 |
|
||
|
|
20 | 5NL-11633-00 | PIN, PISTON EC 250 4T 2010 5NL-11633-00 |
24,02 € |
|
|
|
|
21 | 93420-16086 | CIRCLIP EC 250 4T 2010 93420-16086 |
|
