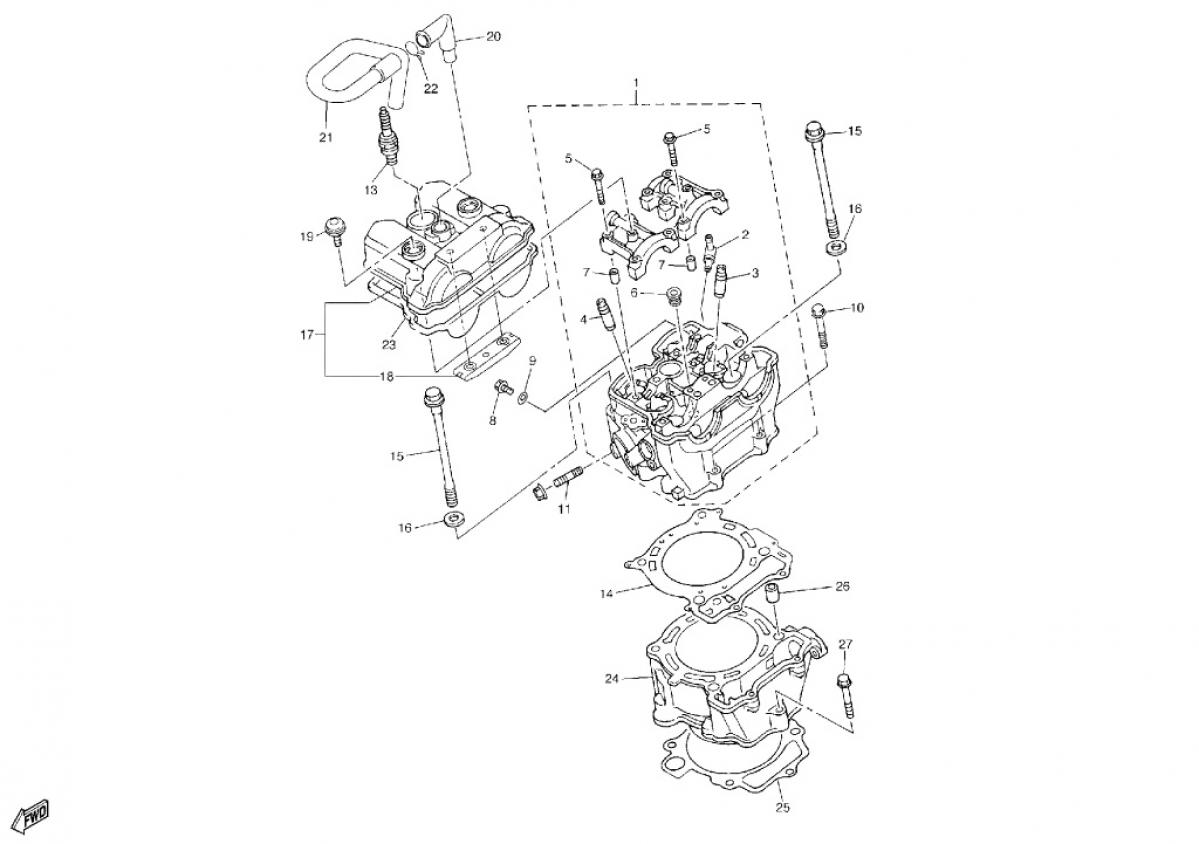

1 | 5TJ-11101-10 | CYLINDER HEAD ASSY 5TJ-11101-10 |
1236,78 € |
|
|
|
|
2 | 353-13115-01 | CONNECTOR SUCTION PIPE 353-13115-01 |
0,92 € |
|
|
|
|
3 | 5TA-11133-10 | GUIDE VALVE 1 5TA-11133-10 |
0,92 € |
|
|
|
|
4 | 5TA-11134-10 | GUIDE VALVE 2 5TA-11134-10 |
0,04 € |
|
|
|
|
5 | 90105-06027 | BOLT, FLANGE EC 250 4T 2010 90105-06027 |
0,04 € |
|
|
|
|
6 | 90340-12007 | PLUG STRAIGHT SCREW 90340-12007 |
4,02 € |
|
|
|
|
7 | 91808-16023 | PIN, DOWEL EC 250 4T 2010 91808-16023 |
1,25 € |
|
|
|
|
8 | 95022-06010 | BOLT FLANGE 95022-06010 |
0,92 € |
|
|
|
|
9 | 90430-06014 | GASKET EC 250 4T 2010 90430-06014 |
|
||
|
|
11 | 90116-08022 | BOLT STUD 90116-08022 |
0,04 € |
|
|
|
|
13 | MFS400134000 | BUJIA NGK CR8E MFS400134000 |
10,77 € |
|
|
|
|
13 | 94701-00411 | PLUG, SPARK (NGK R CR8E) EC 250 4T 2010 94701-00411 |
|
||
|
|
14 | 2S2-11181-00 | GASKET CYLINDER HEAD 1 2S2-11181-00 |
50,10 € |
|
|
|
|
15 | 90105-10163 | BOLT FLANGE 90105-10163 |
14,44 € |
|
|
|
|
16 | 90201-10025 | WASHER PLATE 90201-10025 |
0,04 € |
|
|
|
|
17 | 2S2-11190-20 | COVER CYLINDER HEAD 1 2S2-11190-20 |
222,60 € |
|
|
|
|
18 | 5BE-12241-00 | GUIDE, STOPPER 2 EC 250 4T 2010 5BE-12241-00 |
29,87 € |
|
|
|
|
19 | 5UM-1119E-00 | BOLT COVER HEAD 5UM-1119E-00 |
|
||
|
|
20 | 3P6-11167-00 | PIPE BREATHER 2 3P6-11167-00 |
0,04 € |
|
|
|
|
21 | 5TJ-11166-10 | PIPE BREATHER 1 5TJ-11166-10 |
38,65 € |
|
|
|
|
22 | 90467-160A4 | CLIP 90467-160A4 |
0,04 € |
|
|
|
|
23 | 2S2-11193-00 | GASKET HEAD COVER 1 2S2-11193-00 |
|
||
|
|
24 | 2S2-11311-20 | CYLINDER 1 2S2-11311-20 |
871,76 € |
|
|
|
|
25 | 2S2-11351-00 | GASKET CYLINDER 2S2-11351-00 |
|
||
|
|
26 | 93612-16254 | PIN, DOWEL EC 250 4T 2010 93612-16254 |
3,97 € |
|
|
|
|
27 | 95022-06035 | BOLT FLANGE 95022-06035 |
0,99 € |
|
